Product Overview

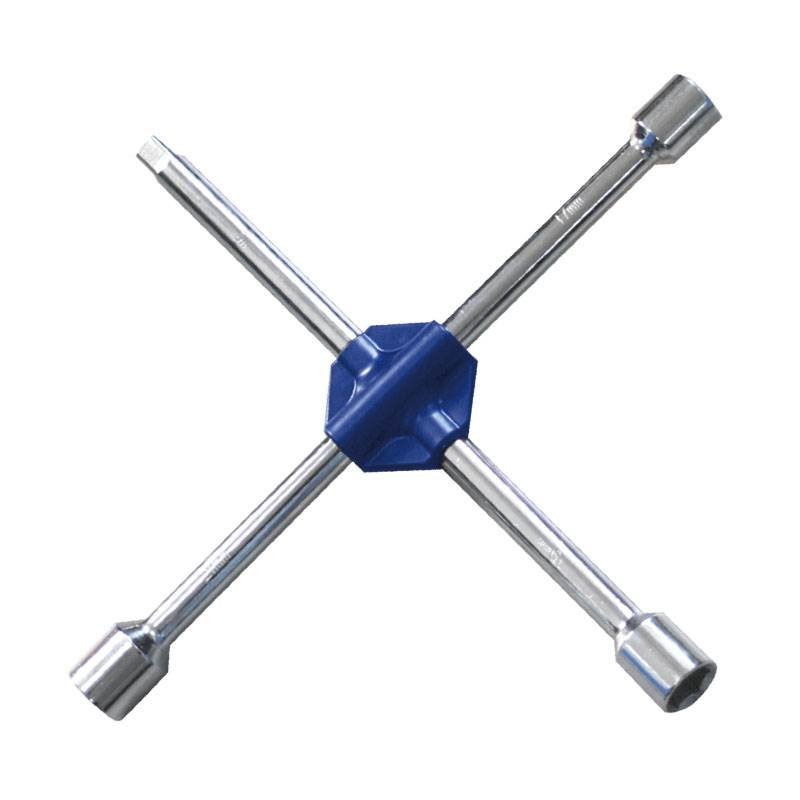

The W40270 cross-shaped lug wrench (also known as a spider wheel wrench or 4-way tire iron) is a heavy-duty automotive tool built for efficient wheel and tire service. Forged from chrome vanadium (CR-V) steel and finished with complete heat treatment, it delivers the ideal balance of surface hardness and toughness. With a 400 mm overall span and integrated 17, 19, and 21 mm socket heads plus a 1/2-inch drive square on the opposite end, it is engineered to handle passenger-car and light-truck wheel nuts in both roadside and workshop environments.
Key Features
-
CR-V Steel Forging: Drop-forged chrome vanadium construction provides superior strength and long service life under high torque.
-
Heat-Treated for Performance: The full heat-treatment process ensures excellent hardness while retaining the flexibility needed to resist cracking or snapping.
-
Multi-Size Coverage: Built-in 17 mm, 19 mm, and 21 mm heads cover the most common lug-nut sizes found on global vehicle platforms.
-
1/2-Inch Drive Compatibility: The square drive end accepts standard 1/2″ ratchets, breaker bars, impact extensions, or torque accessories for added leverage.
-
400 mm Working Length: The generous cross span supplies the mechanical advantage required to break loose stubborn, over-tightened wheel bolts.
Product Specifications
|
Item No.
|
Size / Length
|
Pack/Box
|
Pack/Carton
|
Unit Weight
|
Gross Weight
|
|---|---|---|---|---|---|
|
W40270
|
400 mm
|
2 pcs
|
16 pcs
|
1.40 kg
|
25.38 kg
|
Applications
-
Tire Changes & Rotations: Quickly remove and install wheels on sedans, SUVs, light trucks, and vans during routine service.
-
Roadside Emergency Kits: A compact yet capable tool for roadside spare-tire swaps and field repairs.
-
Garage & Workshop Use: Ideal for professional mechanics performing brake work, suspension jobs, or seasonal tire swaps.
-
Torque-Tool Adaptation: The 1/2″ square drive end allows connection to torque wrenches or pneumatic/ratchet handles for controlled fastening.
Why Choose Us
-
Professional-Grade Durability: CR-V forging and heat treatment outperform cheap cast or carbon-steel alternatives that bend or round off fasteners.
-
Versatile Drive Options: Switch between manual cross-wrench leverage and 1/2″ drive tools without needing separate lug-nut sockets.
-
Complete Common Coverage: One tool replaces several single-size wrenches by covering 17/19/21 mm plus the square-drive interface.
-
B2B-Ready Logistics: Packaged 2 pieces per inner box and 16 pieces per carton (25.38 kg gross), simplifying wholesale stocking and freight calculations.
FAQ
Q1: What sizes of lug nuts does the W40270 fit?
A: It features 17 mm, 19 mm, and 21 mm heads, which cover the majority of standard wheel nuts on cars and light trucks.
Q2: What is the 1/2-inch drive end used for?
A: The square drive end on the opposite side accepts any 1/2″ drive tool—such as a ratchet, breaker bar, or torque wrench—for extra leverage or controlled tightening.
Q3: Is the wrench made from solid steel?
A: Yes. It is forged from CR-V (chrome vanadium) steel and undergoes complete heat treatment for hardness and toughness.
Q4: How long is the wrench?
A: The overall length / span is 400 mm, providing strong leverage for loosening tight wheel bolts.
Q5: How is it packaged for bulk orders?
A: Each inner box contains 2 pieces, and each master carton holds 16 pieces. The gross weight per carton is 25.38 kg.
Q6: Can it be used with an impact wrench?
A: The 1/2″ drive end is compatible with impact extensions and drive tools; however, always verify tool ratings and apply appropriate torque to avoid fastener damage.
